HDT Series Post Hopper Mixer (Post Bin Mixer)
Product details
SUS304 SUS316L HDT Series hopper mixing machine ( Industrial Mixing Machine )with single arm

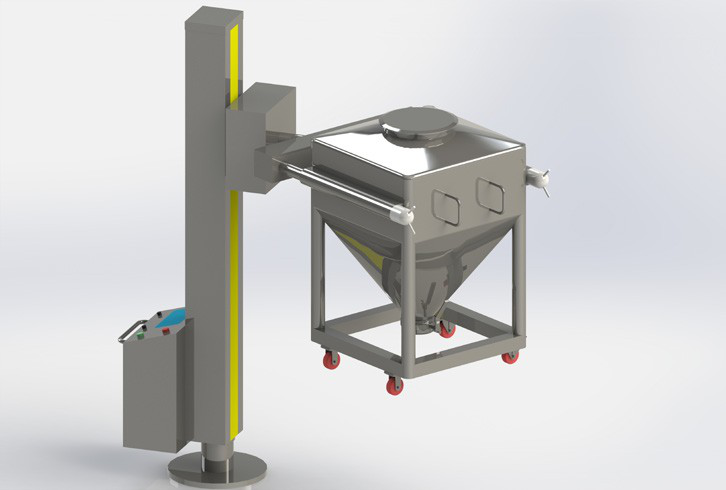

The machine consists of the pillar, bottom plate, turning fork, turning structure, hydraulic system and control system. When it works, it pushes the hopper filled with material into a rotation fork, and tightly locked by nuts, then starts the program, finishes mixing work automatically, and drops the hopper to the ground, next, loosens nuts, and pushes the hopper out.
| Application: | Foodstuff / Pharmaceutical | Motor: | SEW ABB SIEMENS |
| Control System: | PLC+HMI / Button Control | Condition: | Granulate |
| Capacity: | 10-500L | MOC: | SUS316/SUS304/ ,ETC |
| Document: | FAT/ IQ / OQ / PQ | Power supply: | Customized |
Feature
After extensively absorbing foreign advanced technology, taking China's national conditions into consideration, our company develops this new machine. It has proper structure, and covers a small area. Besides, it is highly flexible and adaptable, can not only realize the mixing function, but also lift and discharge, which may reduce equipment’s cost and transfer process. The mixing hopper and rotary axis form an angle of 30 °, contributing to highly efficient mixing effect.
The machine has multi-function of mixing, lifting and discharging, etc. One equipment can match several mixing hoppers with different specifications to satisfy the demands of different batches. It is widely used in pharmaceutical, chemical, food and other industries.
Technical parameters:
| Model | Size of the structure | Net load kg | Total power kW |
| LxWxH | L1 | W1 | H1 |
| HDT200 | 2300x1800x2500 | 600 | 700 | 800 | 150 | 3 |
| HDT400 | 2500x2000x2600 | 600 | 700 | 800 | 300 | 3.7 |
| HDT600 | 2700x2200x2500 | 600 | 700 | 800 | 450 | 4.5 |
| HDT800 | 2850x2400x2500 | 800 | 900 | 900 | 500 | 7 |
| HDT1000 | 3000x2600x2500 | 800 | 900 | 900 | 650 | 7 |
Application
It is mainly used for the tests of mixing different components of dry powders with dry powders, granules with granules, or powders with granules in laboratories. It is an ideal machine for exploring the best process parameters in material mixing, and an advanced mechanically and electrically integrated experimental machine.
Work principle
Put the materials into the closed mixing bin. As the symmetrical axis of the bin forms an included angle with the rotation axis, different components of materials will move in the closed hopper, producing strong turning, diffusing and shrinking actions and achieving the best mixing effect.
Features
1) With novel design, compact structure and beautiful appearance, the machine can reach mixing evenness of 99% and volume loading coefficient of 0.8.
2) It has such features as high rotation height, stable running, reliable performance and convenient operation.
3) The inner and outer walls of the bin are subject to mirror polishing with easy discharging and easy cleaning and without any dead corners and cross contamination, meeting GMP requirments.
